How Can Zhejianghaiwei Special Shape Seal Rings Fit Complex Systems

0
242

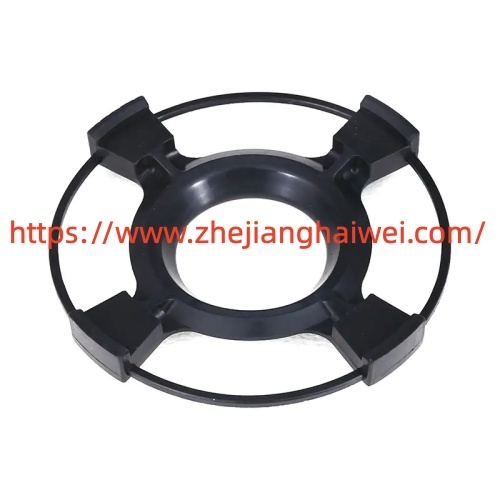

Special Shape Seal Rings can be developed around the geometry of an assembly when conventional sealing profiles do not match the available space. Industrial equipment may contain narrow grooves, unusual corners, changing dimensions, or specially designed sealing paths. In these situations, the sealing component needs to correspond closely with the surrounding structure while providing suitable contact between mating surfaces. A practical solution begins with understanding the actual assembly rather than relying only on standard dimensions.

The first consideration is geometry. Groove width, depth, corner radius, compression space, and installation clearance all influence the final fit. Even a small dimensional difference can affect how a component sits inside a housing. For this reason, engineers should provide accurate drawings or samples whenever possible. These details allow manufacturers to review the intended profile before production begins.

Material selection is another important part of the process. Temperature, pressure, fluid exposure, movement, and operating cycles can affect which material is suitable for an application. Different rubber compounds provide different levels of resistance to heat, fluids, wear, and deformation. A material that works well in one environment may not be suitable for another.

The working environment should therefore be considered together with the profile. A sealing element exposed to hydraulic fluid may require different material characteristics from one used around water, air, lubricants, or elevated temperatures. Compression recovery also deserves attention because repeated operating cycles can influence long term contact with mating surfaces.

Groove design has a direct relationship with installation and sealing behavior. The available space should provide enough room for the component while maintaining the intended compression. Excessive compression may increase installation force and create unnecessary stress, while insufficient compression can reduce contact with the surrounding surfaces.

Corners require additional attention in irregular assemblies. Sharp transitions can create stress during installation, particularly when the component needs to follow a non circular path. Suitable corner geometry can help the component sit more consistently throughout the sealing path. This is one reason why customized profiles can be useful for equipment with unusual structural layouts.

Surface condition should also be checked before assembly. Burrs, scratches, contamination, and rough areas can interfere with contact or damage the sealing material. Clean grooves and properly prepared mating surfaces can make installation more predictable. During assembly, twisting or stretching should also be avoided when the profile design requires a specific orientation.

A Rectangular Seal Ring can be considered for applications where a rectangular cross section matches the surrounding groove and mechanical arrangement. The appropriate profile still depends on dimensions, material properties, pressure, temperature, and installation conditions. The surrounding structure should always be reviewed before selecting a particular configuration.

For equipment manufacturers, customized production provides flexibility when catalog dimensions do not match the actual assembly. Instead of redesigning a housing around an available profile, engineers can provide drawings, samples, or dimensional requirements for a component developed around the intended structure. This can be useful during new equipment development as well as replacement projects.

Zhejianghaiwei supports customized sealing component production based on application requirements, drawings, samples, materials, and dimensional specifications. The production process can include profile evaluation, tooling preparation, sample checking, dimensional inspection, and production according to confirmed requirements.

For purchasing teams, providing complete application information at the beginning can make communication easier. Useful details include groove dimensions, operating temperature, pressure range, working medium, movement conditions, and expected installation method. These details give the manufacturer a clearer basis for discussing suitable options.

Customized sealing components can be used across hydraulic equipment, pneumatic systems, pumps, valves, industrial machinery, fluid handling equipment, and other mechanical assemblies. Each application has its own structural and operating requirements, so the design should be connected with the actual equipment.

When an assembly contains an unusual sealing path, careful coordination between profile geometry, material selection, groove dimensions, and installation conditions can make the development process more practical. Zhejianghaiwei provides product information and sealing solutions at https://www.zhejianghaiwei.com/product/ for manufacturers and purchasing teams reviewing application specific requirements.
