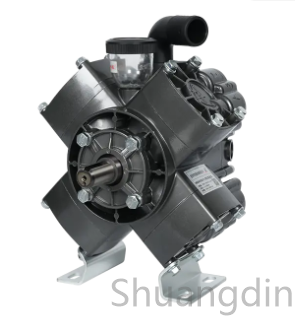

Agricultural spraying machinery relies on the coordinated operation of pumps, valves, filters, distribution lines, and application components. A High Pressure Diaphragm Pump For Sprayers must be evaluated within this wider arrangement because its operation depends on both mechanical construction and the surrounding fluid system. Diaphragm materials, valve seating, sealing methods, housing design, and manufacturing consistency all influence how effectively the assembly supports its intended application.

The diaphragm is responsible for creating repeated changes in the pumping chamber. As it moves, the chamber volume changes and allows liquid to enter and leave through designated passages. This mechanical action requires the diaphragm to flex repeatedly without losing the physical characteristics needed for its intended role. Material selection therefore needs to consider elasticity, resistance to fatigue, compatibility with handled liquids, and stability under expected operating conditions.

Pressure-related requirements also affect component design. The diaphragm, housing, seals, connections, and valves need to be considered as parts of one mechanical assembly. Engineers should evaluate how these components interact during operation rather than selecting them independently. Appropriate design review and validation are important for determining whether the complete assembly is suitable for its intended pressure conditions and application.

Valve construction helps control liquid movement through the pumping chamber. Inlet and outlet valves must respond consistently as the diaphragm moves, while their seating surfaces need to interact correctly with adjacent components. Material selection, geometry, and manufacturing precision can all influence valve behavior. Consistent production methods help reduce component variation and support repeatable assembly quality.

Sealing technology is another central consideration. Seals help maintain fluid containment around connections and moving parts, while their materials must remain compatible with the handled liquids and surrounding environment. Agricultural machinery may encounter vibration, moisture, dust, and temperature changes during field operation. Accurate installation and appropriate component fit are important for maintaining the intended sealing arrangement.

Internal fluid pathways connect the pumping chamber to the inlet and outlet. Their design can influence fluid movement, resistance, and the potential for residue accumulation. Engineers can review passage geometry and surface characteristics to identify areas where unnecessary restrictions or difficult-to-clean spaces may develop. Practical access for inspection and cleaning can also be considered during the initial design stage.

Manufacturing processes translate these requirements into physical components. Molding methods can help maintain consistent diaphragm geometry, while controlled machining supports the accuracy of valve seats and housing features. Assembly processes should preserve the intended relationships between the diaphragm, valves, seals, and connections. Inspection and appropriate validation help manufacturers evaluate component consistency before integrating pumps into larger spraying systems.

Housing and mounting design are also important in agricultural environments. Sprayers may operate over uneven terrain and encounter repeated vibration, dust, humidity, and changes in temperature. The pump assembly needs to integrate with the machine's supporting structure and fluid connections. Secure mounting and well-planned maintenance access can support practical installation and servicing throughout the equipment's working life.

Filtration helps protect the pumping mechanism from contamination. Particles entering the system may interfere with valve movement or contribute to wear on internal surfaces. Suitable filtration, regular cleaning, and inspection can help maintain the condition of the fluid pathway. Cleaning materials should be compatible with the diaphragm, seals, valves, and housing to avoid unnecessary deterioration during routine maintenance.

Maintenance procedures should include inspection of components that experience repeated mechanical movement or fluid exposure. Operators can look for leakage, visible wear, contamination, and changes in normal operation. Pressure-related concerns should be assessed according to the equipment manufacturer's instructions, and the system should be isolated and depressurized before relevant servicing. Such practices support safer maintenance and help prevent avoidable component damage.

A High Pressure Diaphragm Pump For Sprayers brings together material engineering, mechanical design, valve control, sealing technology, manufacturing quality, and equipment integration. Considering these factors collectively helps manufacturers assess the suitability of pumping assemblies for their intended agricultural applications. For more information about SHUANG DIN Co Ltd and <
